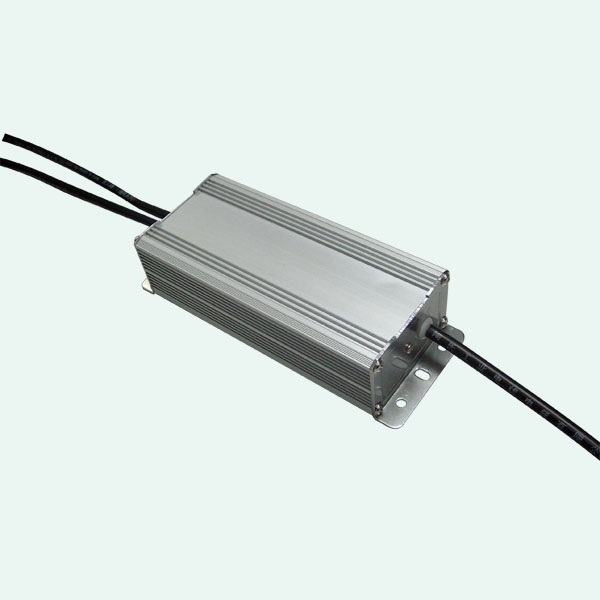

Product Type: 100W waterproof led power supply
- 12V 8A 24V4A LED ·ÀË®µçÔ´
- input power£º 100 to 240V, 50/60Hz
- output power: 12V 8A 24V4A
- Dimension: 139 x 38 x 25mm
- voltage: 90 to 264V AC, 47/63Hz
- safety approval:UL/CUL, PSE, GS, BS, CE, CB, FCC, and EK-Mark
- protections
- over-voltage protection: 120% min
- over -current protection: 120% min
- short-circuit protection: automatic recovery
- load regulation: ¡À5%
- operating temperature: 0 to 40¡ãC
- storage temperature: -20 to 85¡ã:C
- operating relative humidity: 595% RH
- withstanding voltage: 3,000V AC (minimum), 5mA (maximum)
- insulation resistance: 500V DC, 100M¦¸ (minimum)
- solt-start current,can reduce the AC input impact efficiency
- compact size and lightweight
- 100% full-load burning test
- installed with EMI filter, minimum wave
- protection grade of waterproof: IP67
|
|
|
|
